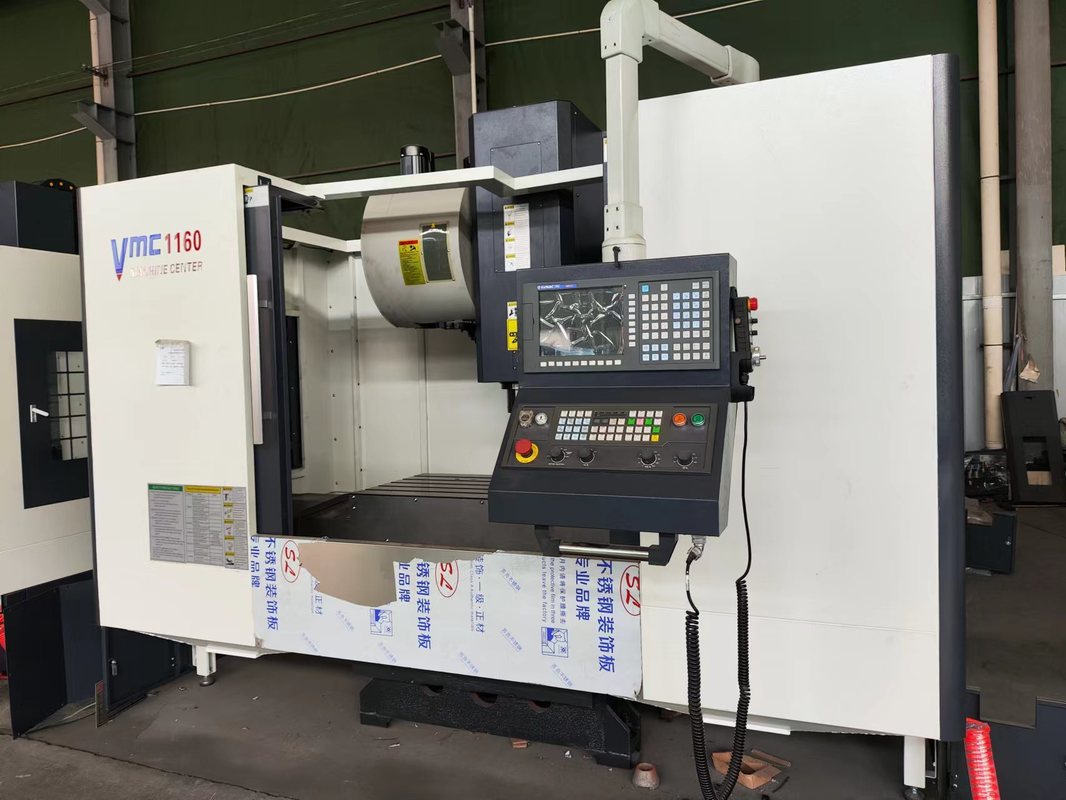

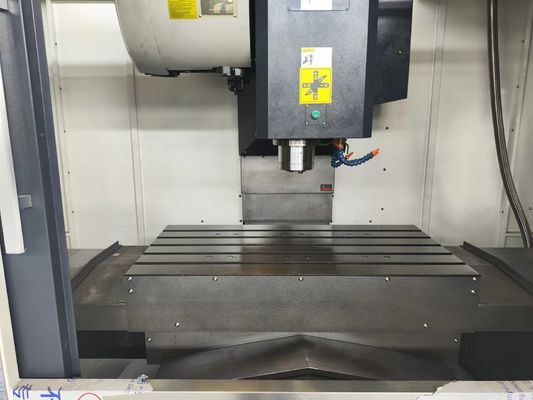

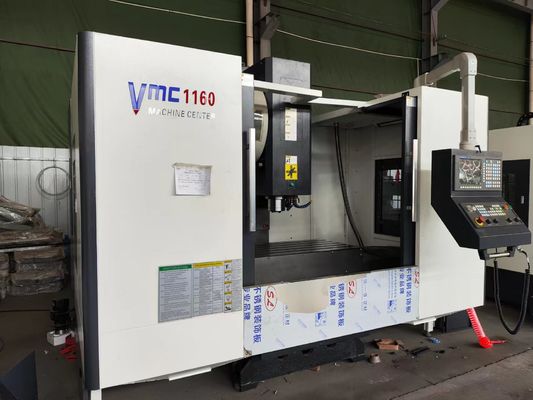

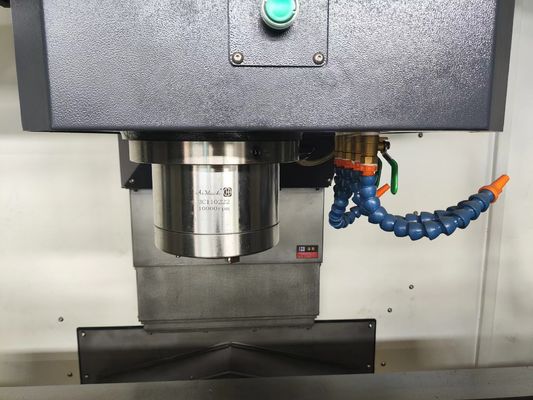

Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

Ampliación de imagen :  Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: HR
Certificación: CE
Número de modelo: VMC 1160
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: 22000$-28000$ per one set
Detalles de empaquetado: paquete de madera
Tiempo de entrega: Después de 15-30 días
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram, garantía comercial
Capacidad de la fuente: 200 por un mes
Contacto

Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

descripción
Nombre: 2022 nuevo diseño 5 eje vmc1160 centro de máquinas verticales Número de hachas: 5
Capacidad de mecanizado: Servicio medio Rango de velocidad del huso (RPM): 8000 - 12000
No. de herraduras: Soltero Cón de husillo: BT40
Precisión de posicionamiento (mm): ± 0005 La capacidad de repetición (X/Y/Z) (mm): ±0.002
Resaltar:

Vertical CNC milling machine VMC1160

,

CNC machining center factory direct

,

VMC1160 vertical milling center price



Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
6800
8000
12000

STANDARD CONFIGURATION:

1. KND2000MF3i Control System
2. Taiwan BT40-8000 spindle.
3. Taiwan 16 tools ATC
4. Taiwan HIWIN three axis linear guideway
5. Taiwan Hiwin ball screw.
6. Work Lamp.
7. Full Enclosure Machine Guard.

OPTIONAL CONFIGURATION:

1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T/ 24T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.
Important note:
1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 0




Product Description
VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.

Product Advantages

The advantages of Machining center vmc 1160

1. The main parts of machine tool 1160 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal lost ructure.
2. Machining center 1160 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal lographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
3. The machining center 1160 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
4. Machining center 1160 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
tool.
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 1
Application Example
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 2
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 3
Certifications
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 4
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 5
Factory direct sale Vertical Cnc Milling Machine Vmc1160 Cnc Machining Center price 6
FAQ
1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.

4. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
